Rubber Silicone Keyboard for Vehicle Air Conditioner Controls: The Cabin Is the Test

An HVAC control panel spends its life in the least forgiving place in a vehicle: a closed cabin that reaches high soak temperatures in sun, drops below freezing overnight, and is wiped with whatever the owner has in the glovebox. The keypad has to keep its legends readable, keep its backlight even, and keep its keys from sticking through that cycle. Material choice handles most of it, but the design has to stop the two failures that material cannot: legend loss and edge bleed.

Automotive keypads are also specified and validated differently from consumer parts. Dimensional and appearance acceptance is documented at first article, and the process control expected by vehicle programmes shapes how the part is produced.

  • Material and cure chosen for heat soak and UV exposure
  • Legend construction that survives years of thumb contact
  • Backlight bleed controlled at the key edges
  • Low fogging and odour for the interior environment

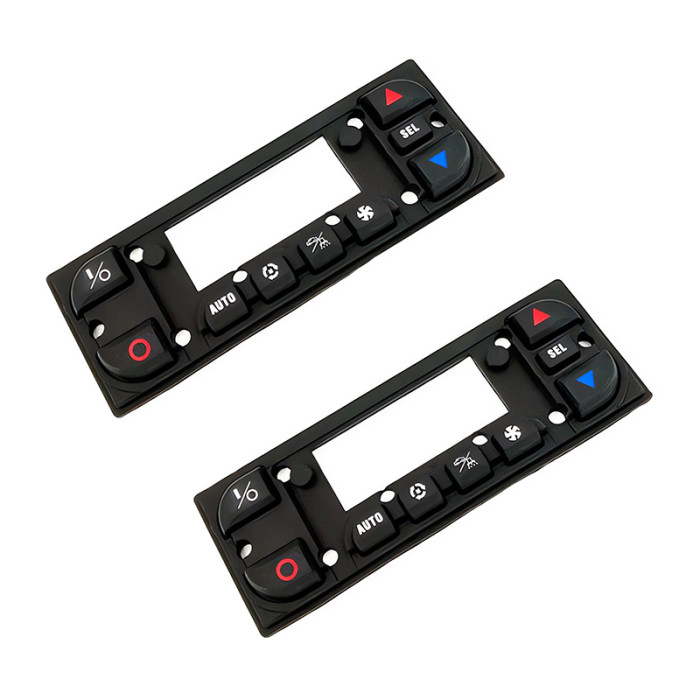

Silicone rubber keyboard for a vehicle air conditioner control panel in a dashboard
Environment

Heat, Cold, UV and Fogging

Interior components are qualified on cycles rather than on single extremes, because the damage accumulates at the transitions.

Thermal Cycling and Compression Set

A dash-mounted panel swings between cold soak and sun load repeatedly. Silicone tolerates the range, but a compound with poor set resistance hardens and the keys stop returning crisply. Compression set measured at the upper soak temperature is the number that predicts this, and it is the mechanism described for steering-wheel keypads in High-Temperature Compression Set in Steering Wheel Silicone.

UV and Surface Hardening

Sunlight through the windscreen reaches the panel for hours at a time. UV hardens the surface and can change the feel and the legend adhesion. A UV-stabilised compound and a pigment system rated for interior exposure slow the effect; the tactile consequences are analysed in UV-driven tactile hardening.

Fogging and Odour

Volatiles from interior materials condense on the windscreen, and vehicle programmes limit them. Post-curing removes most of the volatile fraction before the part is installed, and it is the lowest-cost single improvement available to a moulder. Odour is assessed on the finished part, not on the raw compound.

Vehicle air conditioner control panel keypad after heat and UV exposure testing
Specification

Specification Envelope for an HVAC Control Keypad

The ranges below are a starting envelope for a dash-mounted HVAC keypad. The vehicle programme's own standard governs the final values.

ParameterTypical envelopeWhy it drives the result
MaterialVMQ silicone, 40-60 Shore A, UV stabilisedHeat, UV and compression set in one compound
Service temperatureDesigned across the cabin soak and cold rangeCycles, not single extremes, cause the damage
Compression setTarget under 25% at soak temperaturePredicts key return force after years
LegendTwo-layer laser etched or mouldedThumb contact and cleaning wear printed legends
BacklightBarrier at every key edgeEdge bleed reads as a defect at night
FoggingPost-cured, low-volatileInterior windscreen fogging limits
CurePost-cure recorded per batchTraceability and volatile control

Ranges describe a normal design envelope and are not a published product specification. Final material, tolerances and validation criteria follow the vehicle programme's standard.

Optics

Even Backlight Behind a Curved Panel

HVAC panels are lit at night, usually dimmed with the instrument cluster, and often have a curved or stepped surface. Both make even illumination harder.

Light Spread in a Shallow Panel

A thin panel gives little distance for light to spread, so the LED arrangement has to compensate. Where the panel is curved, the distance from LED to legend varies across the key field, and the brightness follows. Placing LEDs by measured distance rather than by a regular grid is the practical fix.

Edge Bleed

Light escaping at the edge of a key reads as a glowing outline and looks like a defect at night. An opaque skirt around each key, or a full-depth barrier, contains it. On a curved surface the barrier has to follow the curvature, which is a tooling detail decided before the cavity is cut.

Dimming Compatibility

The panel is dimmed with the rest of the interior lighting, so the legend must remain readable at the lowest setting without becoming invisible. That usually means specifying the legend's transmission at the dimmed current rather than at full brightness.

Illuminated vehicle air conditioner keypad at night showing legend uniformity
Programme

Process Control for Vehicle Programmes

Vehicle interior parts are bought with documentation as well as hardware. The moulder's process discipline is part of the product.

Process Control and Traceability

Compounds and batches are traced, cure and post-cure are recorded, and dimensional results are retained against the part. This is the environment in which PPAP-style submissions and change control are expected, and it is worth confirming at quotation rather than at first article.

Dimensional and Appearance Agreement

Appearance is agreed with limit samples under defined lighting, and dimensions against the drawing with the sealing and contact features treated as critical. A part that passes dimensions and fails appearance is a common dispute, and limit samples prevent it.

Validation Sequence

Heat cycle, cold cycle, UV, chemical wipe and actuation life are run in the order the vehicle sees them. Keypad and enclosure sealing practice is covered in Silicone Keypad and Plastic Enclosure Waterproof Sealing; the sequence matters because a seal that survives heat often fails the cold cycle that follows.

Automotive keypad production line with dimensional inspection of HVAC control panels
FAQ

Automotive HVAC Keypad Questions

Can a silicone keypad survive dashboard heat soak?

Yes, with the right compound and cure. The more common issue is compression set reducing key return force over years rather than the material failing outright. Set resistance at the soak temperature is the property to specify.

Why do the legends wear out first?

Because they see the most contact and the most cleaning. Two-layer laser-etched or moulded legends outlast surface printing by a wide margin, and on a high-use HVAC panel that difference is the whole service life.

Do you support PPAP-style documentation?

We work to documented process control with batch traceability, dimensional records and agreed limit samples for appearance. The specific submission format follows what the programme requires.

Send the Panel Drawing and the Validation Standard

Send the panel drawing, the illumination requirement and the validation standard the programme uses. We will review compound, cure, legend construction and backlight barriers. Related: compression set in steering-wheel keypads and UV-driven tactile hardening.

Request an HVAC keypad review

FromRubber moulds silicone keypads for automotive and equipment programmes. We do not sell retail.
