AirTag Case Pocket Tolerance Sets Retention
A pocket that is too tight splits at the rim; too loose and the tracker falls out when dropped. The interference band is the critical dimension.

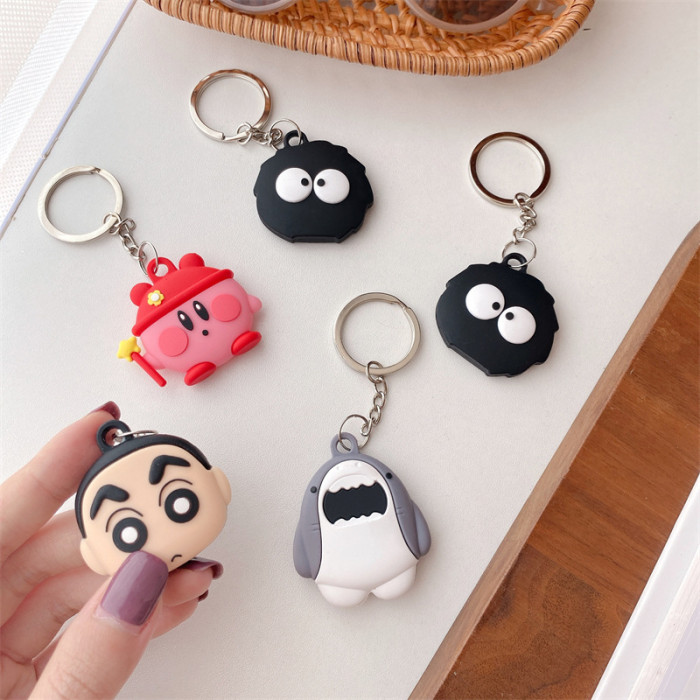

A cartoon silicone case for an AirTag is a molded shell with a character or motif on the outside and a retention pocket inside. The design problem is not the cartoon; it is holding a small rigid disc securely while letting sound and radio pass through.
A pocket that is too tight splits at the rim; too loose and the tracker falls out when dropped. The interference band is the critical dimension.
A molded aperture above the speaker keeps chimes audible without weakening the shell around it.
A loop, a clip or a strap tab is molded in one piece, so there is no separate hardware to assemble or lose.
The tracker is a rigid disc with a polished edge, and the case is a soft shell. Retention comes from an interference ring at the pocket mouth, not from friction over the whole back face. That ring has to deflect enough to accept the disc and stay compressed afterwards, which means its thickness and the durometer are chosen together.
The common failure is a case that splits at the pocket lip after a few insertions, usually because the rim was thinned to make assembly easy. A better solution is a lead-in chamfer and a slightly thicker rim, so the disc rolls in instead of forcing the lip open.
The ring is sized so removal needs a deliberate action, not a shake, while insertion stays tool-free.
A chamfer guides the disc and spreads stress, which is what stops the split at the pocket mouth.
Corner thickness absorbs impact. A uniform thin shell looks minimal but protects nothing.

Options for character and motif cases. Fit is confirmed on a physical tracker sample, since shell dimensions vary between production lots.
| Material | Silicone rubber, soft touch |
|---|---|
| Fit | Pocket sized to the tracker with an interference retaining ring |
| Sound | Molded aperture above the speaker |
| Attachment | Molded loop, strap tab, clip or lanyard hole |
| Artwork | Molded relief, printed color or two-color co-molding |
| Finish | Matte, gloss or soft-touch |
| Color | Solid colors and multi-color cartoon palettes |
| Packing | Poly bag, blister or display box |
Character artwork is accepted only with the buyer written licence. We mold to the supplied artwork and do not source or clear third-party characters.

Retention comes from the ring, not from friction over the back face.

A character reads through silhouette and contrast before it reads through color. Molded relief gives the silhouette, which is why a well-designed single-color case is more legible at retail than a printed one with flat features. Color then adds recognition on top of that form.
Print alone, on a flat shell, produces a case that looks like a sticker wrapped around a disc. The stronger route is a molded base shape with printed color in defined areas, which is the same combination used across our multi-color silicone case work.
Ears, limbs and outlines are molded so the character is recognizable in a single color.
Print or co-molding adds color to recessed panels, which keeps the paint off the highest wear points.
Deep character features need draft on every wall, or the tool drags and the detail loses its edge.
The artwork is converted into a moldable form before a tool is cut, because most character art is not directly moldable.
Silhouette, minimum feature size and undercut risk are reviewed against the case scale.
The character is rebuilt as a moldable relief with draft, and the pocket and aperture are positioned.
A prototype is assembled with a real tracker to check retention, sound and drop behaviour.
Production tooling follows the approved prototype, with color applied by molding or print.
No. Silicone is transparent to the radio frequencies the tracker uses. Metal cases and metal-backed accessories are the ones that interfere.
Only with the buyer written licence and artwork. We mold to the file supplied and do not broker character rights.
A molded aperture above the speaker keeps the chime clear. Without it a thick silicone wall will noticeably dull the sound.
Send the artwork, tracker sample and attachment preference. We will return a molded relief proposal, a fit check and a tooling quote.
