What Temperature Does Your Silicone Keypad Actually Tolerate in the Field?

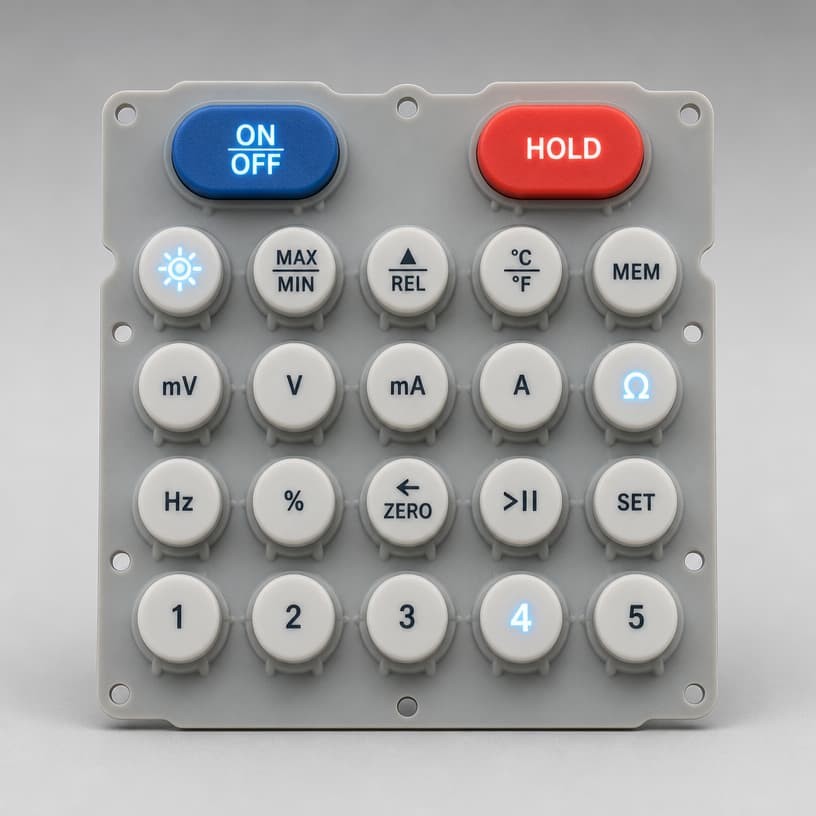

1. The Real Temperature Range of a Silicone Keypad in Handheld Meters

Silicone elastomers are among the most temperature-tolerant polymers: standard LSR grades remain flexible from roughly -50°C to +200°C continuous, with special low-temperature grades reaching -60°C. Those are material limits. The keypad's functional limits are much narrower, because the application cares about tactile function, not just survival: at -30°C a standard 50 Shore A keypad can feel 30–50% stiffer at the thumb, and at +85°C the same keypad may go soft and lose its crisp return. The functional temperature range - where the keypad still feels and switches correctly - is the number that matters, and it is usually -20°C to +70°C for a well-specified instrument keypad.

Three temperature questions belong in every handheld meter specification:

• Operating functional range - where force, travel and switching stay within spec.
• Storage range - where the meter can sit without permanent damage (hot vehicle cabins reach 70–85°C).
• Cycling exposure - how many hot-cold cycles the assembly must survive without bond or seal failure.

Our guides to consistent keypad feel from -40°C to +85°C and the hidden cost of -40°C regional failures go deeper into both the engineering and the business case.

2. Low-Temperature Behavior: When Handheld Meter Keypads Stiffen

At low temperature, silicone's advantage over other elastomers - a glass transition far below -60°C - keeps the material flexible, but the modulus still rises steadily. The practical effect on a keypad: actuation force climbs, return becomes sluggish, and at extreme cold the tactile snap can disappear entirely, leaving a "mushy" press that users read as broken. The effect is reversible on warming, but a technician working outdoors at -25°C does not care about reversibility - the meter has to work now.

Three design levers manage low-temperature feel: choose a softer base hardness (45–50 Shore A instead of 60) so the cold stiffening stays inside the usable band; design the dome geometry with a higher snap ratio so tactile feedback survives the modulus rise; and verify at the cold limit with a force-travel measurement, not a "it still works" check. The high-temperature keypad guide covers the opposite end; the same measurement discipline applies to both.

3. High-Temperature Aging and Thermal Cycling Effects on Silicone Keypads

High temperature does not stop a silicone keypad from working - it accelerates everything else. Every 10°C of sustained temperature roughly halves the time to a given level of heat aging: a compound that lasts 10 years at 40°C may last only 2–3 years at 60°C storage, and post-cure crosslinking slowly raises hardness and lowers rebound. In a meter stored in a hot vehicle, the keypad ages years per season. Thermal cycling adds a mechanical dimension: the keypad, the PCB and the housing all expand at different rates, and repeated cycles fatigue the adhesive bond and the gasket seal.

The specification response is a heat-aging test with a real target: 168 hours at 125°C (or 1,000 hours at 100°C for a softer standard), measuring hardness change and force retention afterwards. Add a thermal cycling test on the assembled unit - for example 100 cycles from -40°C to +85°C - with a functional check at both extremes. The surface treatment guide for aggressive environments (extending keypad life in aggressive environments) shows how coatings interact with temperature exposure.

4. Matching Silicone Keypad Material to Field Temperature Profiles

Not every handheld meter needs the same temperature grade. The specification should start from the actual field profile: a laboratory meter that lives at 23°C can use a standard instrument grade; a utility meter that rides in trucks and works outdoors in winter and summer needs a low-temperature-verified grade and a heat-aging-verified compound; an engine analyzer that sits on a hot manifold needs a high-temperature formulation. Matching the grade to the profile avoids both over-engineering cost and under-engineering failure.

Material suppliers publish the underlying data: the Dow silicone materials library, Wacker's LSR product data and the UL Prospector material database all list low-temperature brittleness, heat-aging and hardness data for keypad-relevant grades. A competent keypad manufacturer should be able to show you the curve, not just the number.

In FromRubber's instrument programs, the material grade is locked into the specification by name and datasheet - "50 Shore A, peroxide-cured LSR, compression set ≤ 20% at 22 h/150°C, low-temperature functional to -40°C" - so the production lot cannot silently drift to a cheaper grade.

5. Case Study: -40°C Field Failures in a Global Handheld Meter Program

A handheld meter manufacturer shipping to Nordic markets started receiving winter complaints: keys that required noticeably more force at -25°C and occasional "no response" presses. The keypad datasheet claimed -50°C capability, so the engineering team initially suspected the electronics. FromRubber's cold-chamber test told a different story: at -30°C, actuation force on the production keypad had risen 45% from the 23°C value, pushing the heavy keys past the operator's comfortable threshold and into the microcontroller's debounce grey zone.

The fix was a material and geometry revision, not a redesign: a 45 Shore A low-temperature grade, a dome geometry with higher snap ratio, and a cold-condition acceptance test (-30°C force measurement) added to the specification. The revised keypad held force rise under 20% at -30°C. Winter complaints stopped that season, and the same design sailed through the next summer's +60°C storage test unchanged.
