Silicone Keypad for Electro-Hydraulic Control Panels: Why Do Buttons Misalign?

A misaligned button on an electro-hydraulic control panel is easy to see and hard to attribute. The cap sits off centre in its opening, one side of the skirt touches the wall, and the spacing between keys looks wrong on one end of the panel while the other end is perfect. The temptation is to measure the keypad and send it back. In practice the keypad is one contributor among five, and on a long panel it is rarely the largest one.

Keypad to panel position depends on features, not on care

Where accurate positioning matters, it has to be built into the parts, because assembly cannot add precision that is not already there.

• Positioning holes. Two holes, separated as widely as the geometry allows, stop rotation as well as translation.
• Locating pins. They should touch the keypad frame or a dedicated land, never the webs, so that locating load stays out of the moving parts.
• Mounting holes. Their clearance decides how much the keypad can move once the fasteners are in.
• Reference edges. A defined edge gives the assembly a datum to build from instead of a visual judgement.
• Panel opening dimensions. The cut-out and the keypad have to be dimensioned from the same origin.

Where a keypad has no locating features, position is set by friction, by the perimeter skirt and by whichever screw bites first. That design can pass a first article and still drift during a production run, because nothing in the assembly forces the parts back to the same position every time.

Put the two drawings in one coordinate system

Appearance is not a measurement. Alignment has to be checked by comparing real dimensional references, and the only way to do that reliably is to overlay the keypad drawing and the panel drawing in the same coordinate system, using the same origin. Five sets of figures belong in that comparison:

• Button centre coordinates. Every button, in X and Y - not the outer profile and not an overall length.
• Panel hole centre coordinates. Measured from the same origin, with the cut-out tolerance band stated.
• Keypad outer dimensions. Including the frame and any locating land.
• Mounting hole locations on both parts, plus the fastener clearance that will be used.
• Panel thickness, because it sets how much of the cap is inside the opening and how much of the skirt is compressed.

The most common finding at this stage is not a wrong dimension. It is a drawing that references an older board or panel revision, so every button is correct relative to a document that is no longer being built. The wider version of this review, including how contact overlap is checked before tooling, is set out in this account of PCB alignment issues for heavy equipment control panels.

Tolerance accumulation: nobody is automatically at fault

Position error on a finished panel is the sum of several individually acceptable tolerance bands, and the sum is what appears at the cap.

• Silicone keypad. Shrinkage varies with wall thickness, cure condition and flow direction, so the band is not uniform across a moulding.
• Panel. A cut or machined opening with its own positional band and a burr condition that affects the effective clearance.
• Housing. Usually the loosest member in the stack, and the one whose locating features set the keypad's datum.
• Board. Tight in position, but not zero, and often referenced to a different datum than the panel.
• Mounting holes. Clearance that converts a positional error into a real shift once the fasteners are tightened.

The general tolerance practice used for linear and angular dimensions without individual indications is defined in ISO 2768-1:1989, and it is useful as a shared vocabulary when the clearance question is argued between suppliers. It is not, however, a rule for moulded rubber: a silicone keypad's real band is a measured value, and it should be stated on the keypad drawing rather than assumed from a machining class.

Assembly sequence decides the final position

Alignment is not a state. It is the end result of a sequence, and the position can change at each step:

1. Initial placement. The keypad is set into the housing or against the panel. This is where a missing locating feature does its damage, because nothing holds the part.
2. Board installation. Fitting the board can push the keypad sideways if the board edge, a connector or a support pillar touches the skirt.
3. Closing the housing. The closing motion can drag the keypad along the panel face before contact is made.
4. Screw tightening. The first screw becomes the datum for everything after it, and the resulting shift accumulates toward the far end of the panel.
5. Final fastening. Reaching full torque at the last fastener pulls the panel across and can close the clearance on one side of every button.

A verification sequence that catches most of this: place and locate the keypad, check button centres against the opening with no fasteners, fit the board and check again, close and tighten in a cross pattern to the production torque, then check once more. Recording button centre position at each step shows the step that moves the part, and in most cases only one step does. The same assembly-stage effect is documented in this note on button alignment problems during PCB assembly.

Deformation: when the keypad looks misaligned but is not

Silicone is compliant, which means it can be pushed out of position rather than assembled into the wrong one. Five conditions produce a displaced appearance without any dimensional error:

• Excessive compression that forces the skirt sideways against the opening wall.
• Uneven pressure from a cover that closes flat at one end only, which shifts the whole keypad toward the loaded side.
• Thin sections in the frame that buckle under clamping load and let the button pitch change locally.
• Local deformation around a boss or an over-tightened fastener, which pulls nearby buttons off centre.
• Storage and handling. A keypad stored under load or folded in a box can hold a set that only becomes visible once it is installed.

Comparing a suspect keypad against the drawing while it is lying flat on a surface will not show any of these. The part has to be measured in the position the assembly puts it in.

Clearance: why a button can look off centre and still work

Insufficient clearance has two consequences that are often confused. The first is mechanical: the cap rubs on the opening, which raises operating force and produces the return problems that show up as sticking. The second is electrical: if the cap is pressed against one side of the opening, the button axis can tilt slightly and move the contact underneath, which shows up as intermittent switching rather than as a visual defect.

How much clearance is needed is not a universal number. It depends on button geometry, panel thickness, the travel the button has to complete, the tolerance bands of every part in the stack, and what the application allows. A panel with generous travel and a coarse opening tolerance can work with less clearance than a panel that has to switch at a defined point within a narrow stroke. What can be stated generally is the method: build the stack from the worst-case extremes in both directions, and confirm that clearance remains positive at every button in the assembled state.

Clearance also interacts with pitch. Even when every button is centred in its own opening, a moulding whose pitch has drifted moves the buttons toward one end of the panel, so the outermost button can lose clearance while the middle one keeps all of it. That is why the outer buttons have to be checked individually rather than sampling one in the middle.

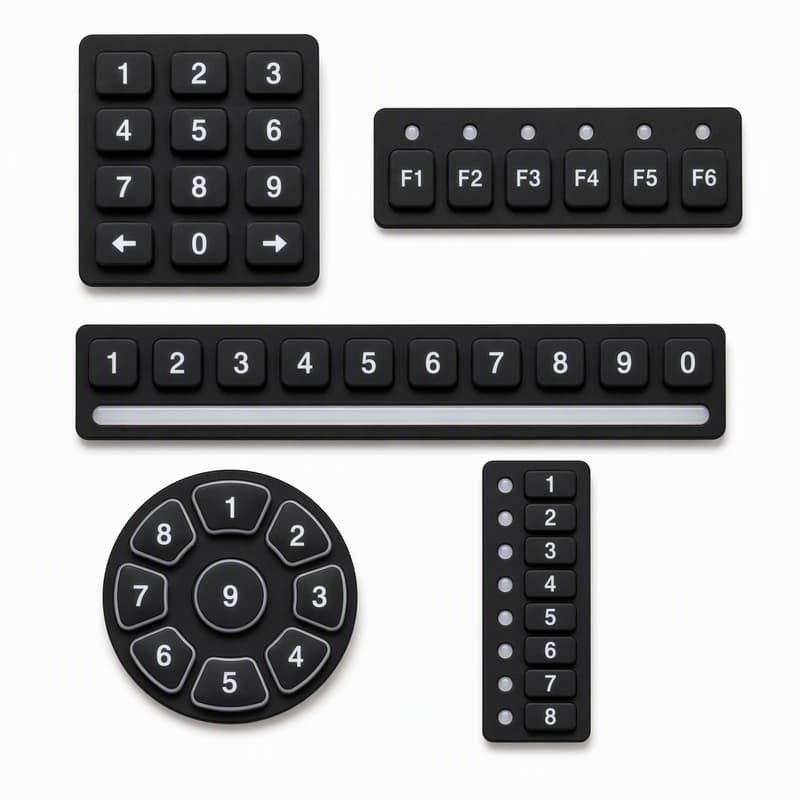

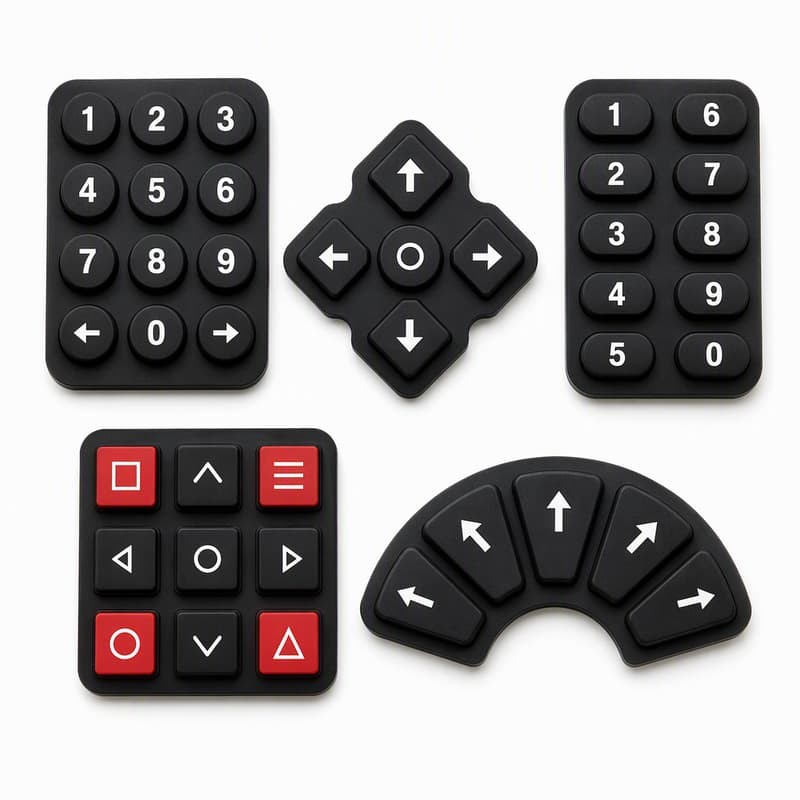

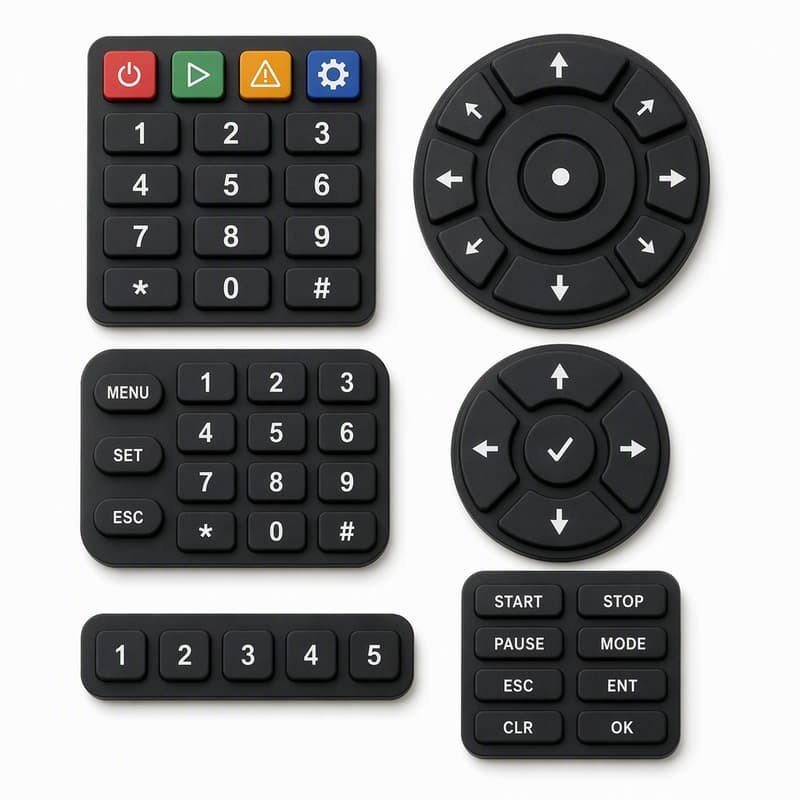

Curved keypads and narrow function strips make this worse, because the material between buttons is thinner and there is less frame stiffness to hold the pattern. A circular dial or a long number strip relies on the base around it to hold position, and when that base is compressed unevenly the whole pattern shifts sideways as a group.

Visual alignment and electrical alignment are different questions

Where the keypad carries conductive pills rather than a discrete switch, the offset that matters is measured between the pill and the pad, and the failure pattern that follows is described in this explanation of carbon pills that fail to match PCB pads.

Where a panel includes a function that cannot be relocated - an emergency stop, for example - the alignment requirement around that actuator is effectively hard. ISO 13850:2015 specifies functional requirements and design principles for the emergency stop function on machinery; it does not set keypad tolerances, but it does mean that an actuator whose operability is safety-related cannot be left to the accumulated tolerance of the rest of the panel. In the same way, IEC 60947-5-1:2016 covers electromechanical control circuit devices and switching elements including the push buttons and indicator lights used on machine panels, and its mounting and durability expectations travel back into the panel and keypad drawings even though the standard governs the device rather than the silicone part.

How misalignment is prevented before tooling

Most of this is a paper exercise, which is exactly why it is worth doing before the tool is cut. Six controls belong on the supplier side:

• Drawing review against the current panel and board revision, with a recorded revision number.
• Two-dimensional and three-dimensional verification of button coordinates and contact positions before electrode work begins.
• Mould tolerance control stated per feature, with cavity-to-cavity dimensions reported.
• Locating feature design as part of the keypad, sized with the panel cut-out rather than added later.
• Prototype assembly testing in the customer's own housing, closed and torqued, before production tooling.
• Sample approval that records measured positions, not a visual sign-off.

One practical note on the drawing-review step: the information that has to be exchanged for that review to be useful is set out in this guide to explaining a silicone keypad design to a factory without mistakes.

FromRubber, the brand of Dongguan Bohao Electronic Technology Co., Ltd., has moulded custom silicone keypads since 2010 and works from customer drawings, samples or sketches, which is the stage at which alignment questions are least disruptive to answer.

Frequently asked questions

In short

Misalignment on an electro-hydraulic control panel is a stack-up result, not a single defective part. The useful starting point is to decide whether the symptom is position, pitch or contact, then check the keypad and panel drawings in one coordinate system, then verify position at each step of the assembly sequence. That order identifies the responsible contributor without replacing parts that were never wrong.

Sources and standards referenced

• ISO 2768-1:1989, General tolerances - Part 1: Tolerances for linear and angular dimensions without individual tolerance indications. https://www.iso.org/standard/7748.html
• IEC 60947-5-1:2016, Low-voltage switchgear and controlgear - Part 5-1: Control circuit devices and switching elements - Electromechanical control circuit devices. https://www.iecee.org/certification/iec-standards/iec-60947-5-12016
• ISO 13850:2015, Safety of machinery - Emergency stop function - Principles for design. https://www.iso.org/standard/59970.html
