Waterproof Silicone Seals: Design Principles, Material Selection, and Testing Standards
Waterproof Silicone Seals: Design Principles, Material Selection & Testing Standards
An in-depth engineering guide to designing, manufacturing, and validating waterproof silicone seals — from IP rating selection through production testing.
The Critical Role of Waterproof Seals
A waterproof silicone seal is often the single component that determines whether a device survives its intended environment or fails catastrophically. From smartwatches that withstand pool swimming to outdoor LED luminaires that endure years of rain, the silicone seal is the first — and often only — line of defense against water ingress.
The global elastomeric seal market is projected to exceed $18 billion by 2028, with silicone representing the fastest-growing segment due to its exceptional temperature range (-50°C to +250°C), UV stability, and biocompatibility. However, achieving reliable IP67 or IP68 protection requires a holistic understanding of material science, mechanical design, and process control.
IP Rating Explained: IP67, IP68, and IP69K
The Ingress Protection (IP) system (IEC 60529) classifies protection against dust and water. For silicone seals, these are the relevant ratings:
Temporary Immersion
1 m depth for 30 minutes. Protects against rain, splashing, and brief submersion.
Continuous Immersion
Specified depth and duration. Designed for permanent or prolonged water exposure.
High-Pressure Jets
Resists close-range high-pressure/high-temperature water jets.
Seal Design: Compression and Groove
The fundamental principle of silicone seal waterproofing is compression. The seal must be compressed between two mating surfaces to create a barrier. Key design parameters:
- Compression ratio: 20–25% for static seals, 10–15% for dynamic seals. Too little compression leaks; too much causes permanent deformation.
- Groove fill: 85–95% of groove volume. Under-fill leaves gaps; over-fill causes extrusion and flash.
- Surface finish: Mating surfaces should be Ra ≤ 0.8 μm. Rough surfaces create leak paths.
- Gland design: The groove must have radiused corners (R ≥ 0.5 mm) to prevent seal damage during assembly.
Engineering Tip: Always design the groove cross-section area to be 15–20% larger than the seal cross-section. This allows for thermal expansion and manufacturing tolerance without over-compressing the seal.
Material Selection for Waterproof Seals
Not all silicone is equal for waterproof sealing. The properties that matter most:
| Property | Standard Silicone | Premium Waterproof Grade | Test Standard |
|---|---|---|---|
| Compression Set (100°C×24h) | ≤ 25% | ≤ 12% | ISO 815 / ASTM D395 |
| Tensile Strength | ≥ 5.0 MPa | ≥ 7.5 MPa | ISO 37 / ASTM D412 |
| Tear Strength | ≥ 8 kN/m | ≥ 15 kN/m | ISO 34-1 / ASTM D624 |
| Water Absorption (7d@23°C) | ≤ 0.8% | ≤ 0.3% | HG/T 3860 |
| Hardness Range | Shore A 50–70 | Shore A 30–50 | ISO 868 |
| Temperature Range | -40°C to +200°C | -50°C to +250°C | UL 746B |
LSR vs. HCR for Seals
Liquid Silicone Rubber (LSR) — preferred for high-volume precision seals. Tolerances ±0.05 mm on cross-section, flash-free, 30–60s cycle times. High-Consistency Rubber (HCR) — suitable for large cross-section seals, extruded profiles, or low-volume custom parts.
Screen Printing on Seals
Many silicone seals require identification marks — part numbers, date codes, certification stamps. This presents unique challenges because the ink must survive the same environmental stressors as the seal.
- Ink type: Only silicone-based or UV-curable inks with proven water immersion resistance. Standard inks fail within 24 hours of water exposure.
- Print location: Never place marks on the sealing contact surface. Print on inner diameter, outer diameter, or a designated lip area.
- Adhesion testing: Must pass a 72-hour immersion test followed by tape-pull verification.
- Alternative — laser marking: For permanent marks that must survive continuous immersion, laser marking is superior — no ink to delaminate.
FromRubber: Our laser marking system achieves ±0.01 mm positioning and creates permanent marks that withstand 10,000+ immersion cycles without degradation.
Testing Methods: From Prototype to Production
Verifying that a seal meets its IP rating requires a structured testing protocol:
IPX7 / IPX8 Immersion (IEC 60529)
IPX7: 1 m depth × 30 min. IPX8: specified depth × duration. The test must simulate differential pressure at depth.
Air Leak Test (Pressure Decay)
Most common production-level test. Pressurize to 10–50 kPa (IP67) or 50–150 kPa (IP68). Acceptable leak rate for IP68: < 0.1 ml/min at 50 kPa.
Compression Set (ISO 815)
Material-level test. Sample compressed 25% at 100°C × 24h. For IP68: compression set must be ≤ 12%.
Thermal Cycling (-20°C to +85°C)
10 cycles followed by leak test. Seals that pass at room temperature may fail after thermal expansion differences.
Drop & Vibration (1 m drop, 10–500 Hz)
Simulates real use — tested assembly is dropped and vibrated, then re-tested for IP rating. Many designs fail here.

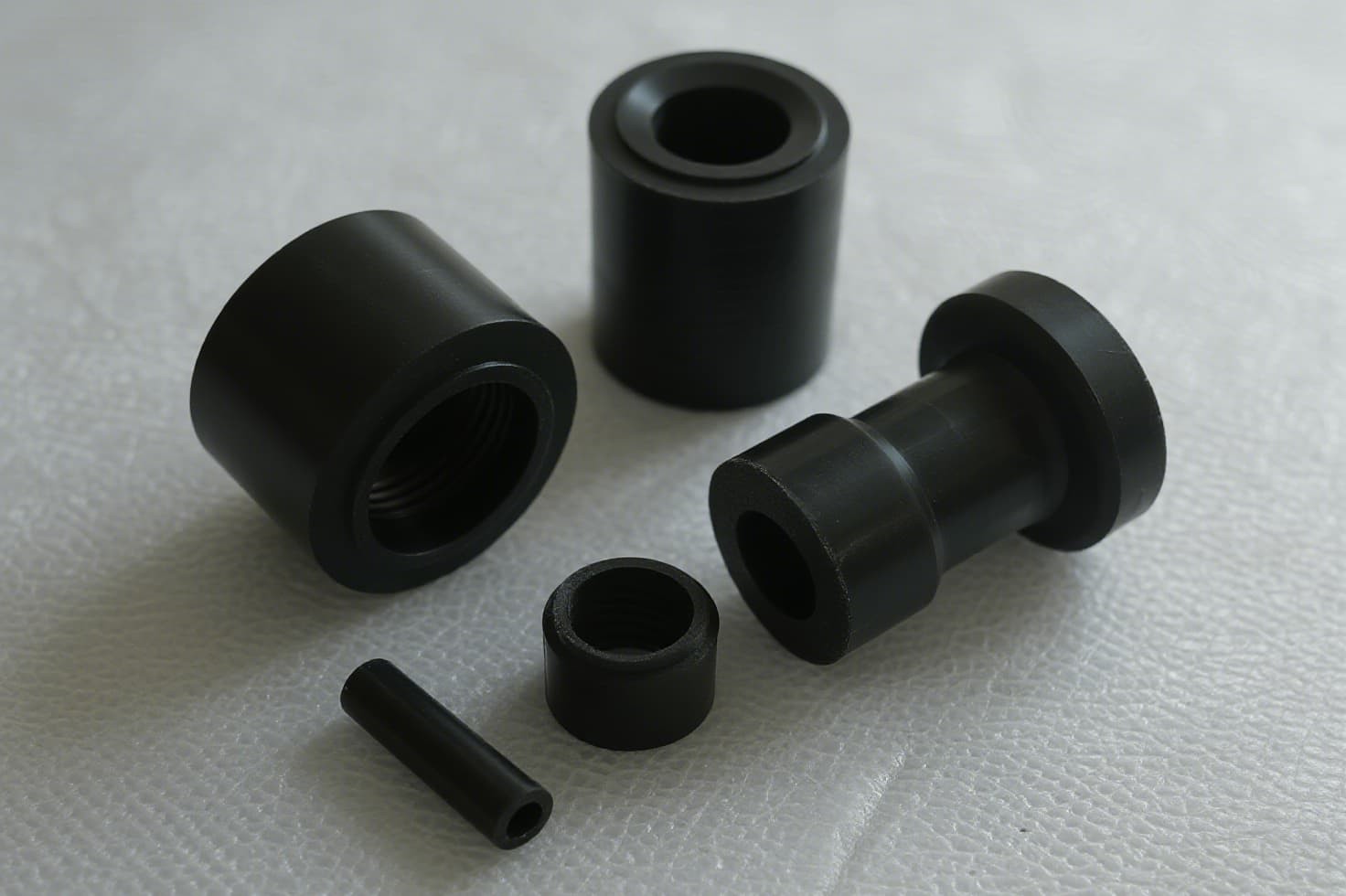

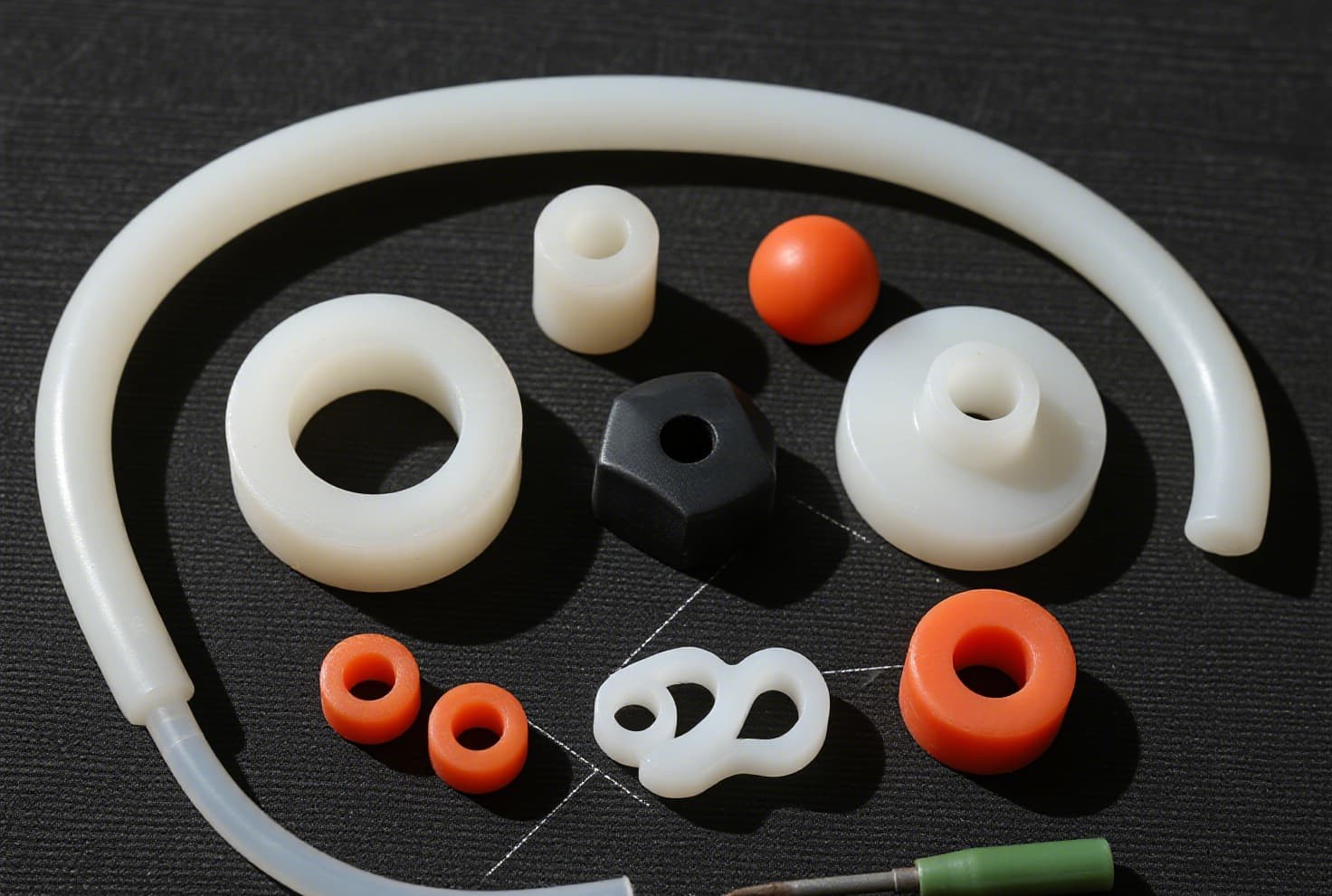

FromRubber's Seal Capabilities
FromRubber has been manufacturing precision silicone seals since 2010. Our capabilities include:
- 10 automated LSR molding lines with closed-loop process control, ±0.05 mm cross-section tolerance
- 32 compression presses (30T–250T) for large cross-section and custom profile seals
- In-house mold workshop — S136 hardened steel, conformal cooling, precision venting
- Full testing lab — pressure decay, IP immersion tank (2 m depth), compression set, thermal cycling (-40°C to +150°C), tensile/tear testing
- Certifications: ISO 9001, IATF 16949, FDA-compliant, UL listed
- Capacity: 500,000+ seals per day
Trusted by global brands: FromRubber supplies waterproof seals for automotive connectors (IP69K), outdoor LED lighting (IP68), smartwatches (IP68 5 ATM), and medical devices.
Frequently Asked Questions
What is the difference between IP67 and IP68 for seals?
IP67 tests temporary immersion at 1 m for 30 min. IP68 tests continuous immersion at a specified depth (typically 1.5–30 m) for longer durations. IP68 seals require lower compression set (≤ 12%), softer durometer (Shore A 30–50), and tighter groove tolerances.
What compression ratio should I use for a waterproof O-ring?
20–25% compression is recommended for static waterproof applications. For dynamic seals (moving parts), 10–15% is typical. Groove depth must be precisely controlled to maintain this compression.
Can a silicone seal achieve IP69K?
Yes — with higher durometer (Shore A 60–70) and a robust gland design to prevent extrusion under high-pressure water jets. FromRubber has produced IP69K-rated seals for food processing and agricultural machinery.
What is the best material for saltwater exposure?
Platinum-cured LSR with low water absorption (< 0.3%). We recommend a specialized marine-grade silicone compound for coastal or underwater applications.
Can you produce prototype seals for testing?
Yes — FromRubber offers prototype seal production within 3–5 days using rapid prototype molds. We can produce 50–200 prototype seals for your in-house testing.
