Conductive Silicone: How It Works and Its Role in EMI Shielding
Conductive silicone is an insulating elastomer loaded with metal or carbon particles until the filler forms a continuous three-dimensional network. Plain silicone sits at 1014–1016 ohm-cm; past the percolation threshold the same material drops to 0.0009–8 ohm-cm depending on the filler. The rubber still seals; the filler carries current.
That mechanism lets one moulded part do two jobs: stop electromagnetic energy crossing an enclosure joint, and keep dust and water out. The decisions left are narrow — filler, loading, compression range, groove geometry — and each trades shielding against cost or corrosion risk.
How an insulating rubber becomes a conductive silicone
Conductivity does not arrive gradually. Below the threshold, particles are too far apart and the compound still insulates. Above it, electrons travel by direct particle-to-particle contact or by quantum tunnelling across nanometre gaps. The threshold typically falls between 15% and 30% of composite volume; commercial loading runs from 15% to 80% by weight.
What moves the percolation threshold
Flake, irregular and dendritic particles build networks at lower loading than spheres, because they create more contact points per unit volume. A bimodal size distribution lets small particles fill gaps between large ones. Poor dispersion leaves conductive clusters separated by insulating zones, which is why mixing is a quality variable rather than a process detail. Higher loading buys conductivity with hardness and elongation, so the usable window is narrower than a data sheet implies.

Shielding starts at the board: the gasket has to close every joint in the path the energy would take.
Filler systems and what each one costs you
Filler selection fixes resistivity, shielding, corrosion behaviour and unit cost. The ranges below are production figures, not laboratory bests.
| Filler | Volume resistivity (ohm-cm) | Shielding | Relative cost | Corrosion resistance | Typical use |
|---|---|---|---|---|---|
| Pure silver | 0.0009 | Extremely high | Highest | Excellent | Military, aerospace, high-frequency RF |
| Silver-plated copper | 0.003 | Very high | High | Good | High-performance commercial electronics |
| Silver-plated glass | 0.006 | High | Medium | Good | Telecom infrastructure |
| Nickel-graphite | 0.01–0.75 | High, 100+ dB | Low | Excellent, salt spray and UV | Commercial, 5G, automotive |
| Carbon black | 1.0–8.0 | Low to medium | Lowest | Excellent | ESD protection, non-critical shielding |
Nickel-graphite is the working default for industrial and telecom hardware: above 100 dB from 100 MHz to 10 GHz at a fraction of silver cost, with graphite adding lubricity and nickel passivating rather than corroding. Silver wins where a shield must survive a decade.

Designing the gasket: compression, groove and stop
A conductive gasket conducts only while compressed. The working range is 15–30% of free height: below it, contact resistance climbs; above it, the elastomer takes a permanent set and the joint leaks later.
Compression stop before profile
Make the groove 20–25% shallower than the gasket's free height so hardware bottoms out before the seal is crushed. Silver-filled compounds are harder than nickel-graphite at equal loading, so the deflection force budget changes with filler, not only with profile.
Two checks belong on the drawing: galvanic compatibility between filler and enclosure plating, since a nickel-filled gasket against a dissimilar metal corrodes at the joint; and cross-section, because a D-profile recovers more reliably than a flat one. Standard compounds hold from -55 °C to +200 °C, with short excursions to +250 °C.

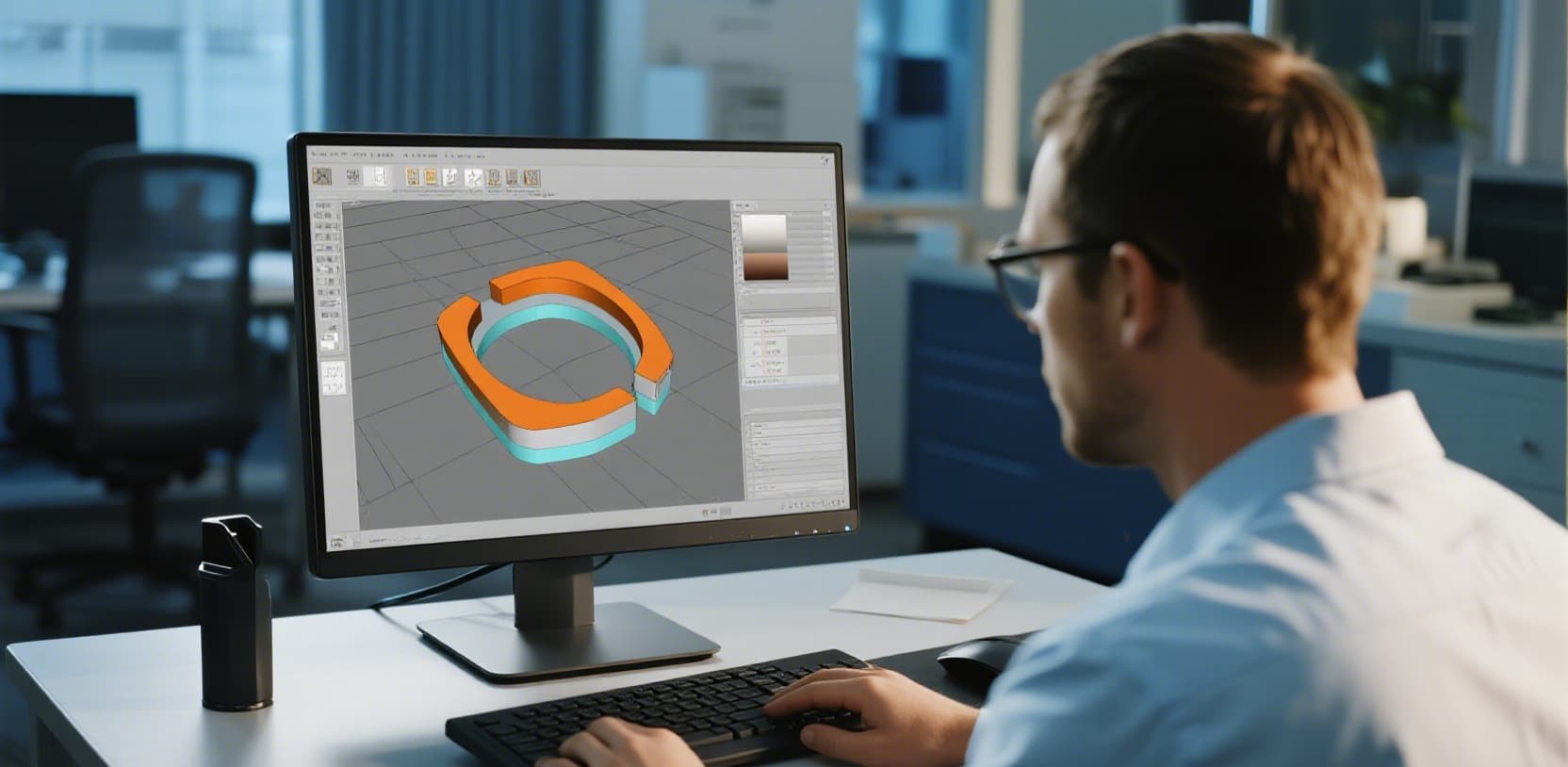

A D-profile against a hard stop recovers predictably through repeated service openings.
Reading shielding numbers in the 5G bands
Shielding effectiveness falls with frequency. Independent testing of nickel-graphite gaskets to MIL-DTL-83528 gives 125.2 dB E-field at 100 MHz, 115.7 dB plane-wave at 2 GHz, 115.5 dB at 10 GHz and 76.3 dB at 40 GHz.
The 40 GHz figure decides remote radio unit and small-cell designs. Above 24 GHz aperture leaks dominate: a seam gap harmless at 2 GHz becomes an antenna, and flange flatness matters more than a headline dB number.
Volume resistivity is the practical proxy for shielding, because a shielded-room measurement is slow and expensive. Compounds below 0.01 ohm-cm typically give 80–120 dB across most bands. Specify resistivity on the purchase order and confirm dB only on the qualification unit.
Testing that predicts field life
Three tests separate a compound that lasts from one that does not. Volume resistivity to ASTM D991 uses a four-electrode configuration so contact resistance does not contaminate the reading. Compression set to ASTM D395 shows how much height survives long-term deflection. Thermal aging to ASTM D573, then salt spray to ASTM B117, is where filler systems diverge: formulated compounds retain over 80% of initial conductivity after 1,000 hours at 125 °C and stay within 5 dB after salt spray.
Ask for aging data on your compound, not the filler family. Storage is part of the spec: cool, dry, away from ozone, five-year shelf life.

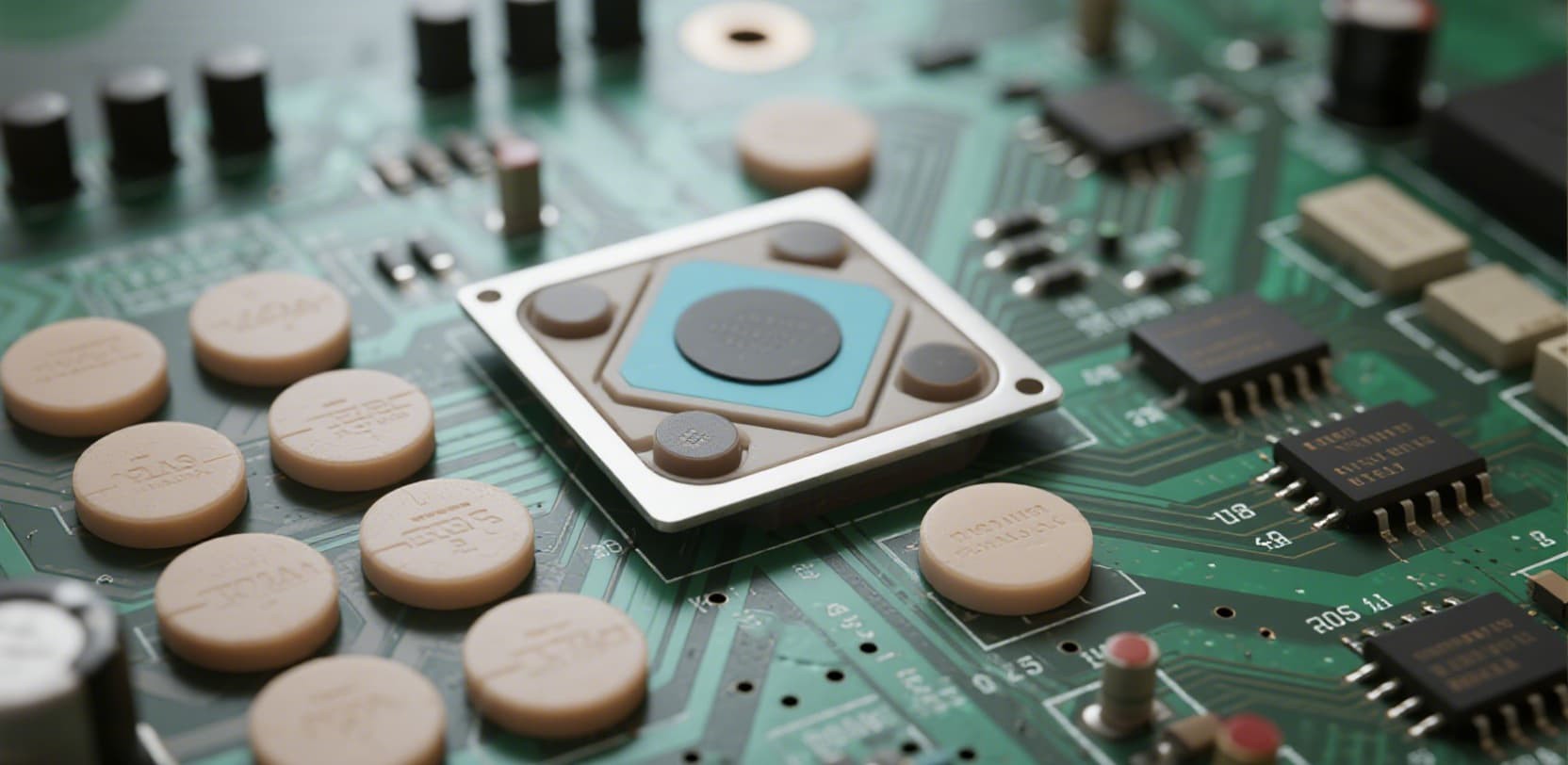

The test plan belongs on the drawing: resistivity, compression set and aging, each tied to a band and a service life.
Questions engineers ask about conductive silicone
Can one gasket seal and shield at the same time?
Yes, and that is why the material exists. One moulded profile can meet IP67 against dust and water while meeting MIL-DTL-83528 shielding limits, removing a part and an assembly step from the enclosure.
Why does contact resistance rise after assembly?
Usually over-compression or a missing stop: the gasket takes a set, recovery drops and contact pressure falls below the level needed to break through surface oxide. Check groove depth against free height before changing compound.
Is nickel-graphite suitable outdoors?
Yes. It resists salt spray, UV and ozone, which is why it dominates outdoor radio units and automotive enclosures. Silver resists oxidation better, at several times the material cost.
How much filler loading is too much?
When hardness and elongation leave the range the assembly tolerates. Beyond roughly 70% by weight, moulding defects and compression set usually cost more than the conductivity returns.
