What Should I Do If My Silicone Keypad Design Has Very Small or Complex Symbols?

Question

Accepted Answer

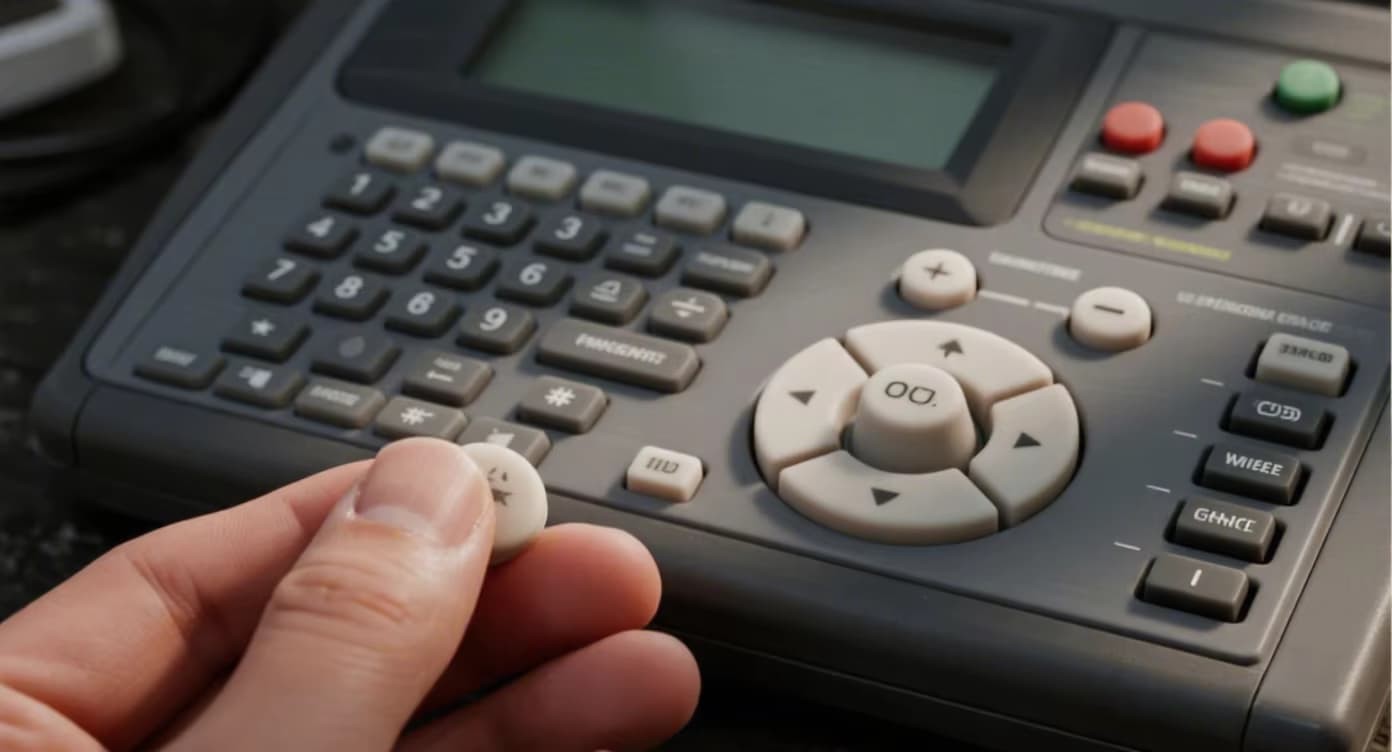

Silicone keypad with very small and complex symbols using laser etching and precision pad printing technology at FromRubber

PRECISION GRAPHICS · SYMBOL CLARITY

What Should I Do If My Silicone Keypad Design Has Very Small or Complex Symbols?

You have a sleek silicone keypad design — but your symbols are tiny (2mm high), highly detailed (logos with fine lines), or require perfect edge definition. Standard pad printing might blur or wear off. Don't compromise. FromRubber has solved this challenge for hundreds of medical, consumer, and industrial clients. This guide covers four proven methods to achieve crisp, durable small symbols — and how to choose the right one for your project.

Why Small Symbols Fail

Pad printing ink bleeds on fine details (under 0.3mm line width)
Screen printing distorts on curved key surfaces
Laser etching can burn fine features if not tuned precisely
Wear from finger abrasion erodes delicate legends

Success Criteria

Minimum line width: 0.15mm achievable with right process
Durable through 200k+ actuations
High contrast even under backlighting
Consistent symbol placement across thousands of keypads

4 Proven Methods for Silicone Keypad Small & Complex Symbols

Laser Etching

Fiber laser removes top silicone layer to create recessed symbols. Achieves line widths down to 0.1mm. No ink, no wear. Ideal for ultra-fine text and logos. Works beautifully with backlighting. The highest durability (lasts life of keypad).

Best for: Logos, tiny text, high-contrast designs, backlit symbols.

Cost: $$ (moderate tooling)

High-Precision Pad Printing

Advanced pad printing with laser-engraved plates and ultra-fine silicone pads. Achieves 0.2mm line width with multiple colors possible. Good for medium detail and lower volume. Apply UV clear coat to double wear resistance.

Best for: Multi-color symbols, smaller production runs (5k-50k units).

Cost: $ (lower tooling)

In-Mold Decoration (IMD)

Symbols printed on a film that is insert-molded into the silicone surface. Achieves 0.15mm line width. Graphics are permanently encapsulated — impossible to wear off. Perfect for high-volume medical or premium products.

Best for: High volume (50k+ units), extreme durability, complex multi-color designs.

Cost: $$$ (higher tooling)

Laser Engraving + Filled Ink

Laser creates shallow cavity, then ink is filled and wiped. Combines precision of laser with color contrast. Line width 0.15mm, excellent abrasion resistance because ink sits below surface.

Best for: High-contrast symbols, dark backgrounds, outdoor keypads.

Cost: $$ (moderate)

Quick Comparison: Which Method for Your Silicone Keypad Design Symbol?

Requirement	Best Method	Line Width Min	Durability
Ultra-fine text (1-2mm height)	Laser etching	0.1mm	⭐⭐⭐⭐⭐
Multi-color complex logo	IMD or high-precision pad print	0.15-0.2mm	⭐⭐⭐⭐⭐ (IMD)
Backlit symbols	Laser etching	0.1mm	⭐⭐⭐⭐⭐
Low volume / prototype	Pad printing	0.2mm	⭐⭐⭐
Highest wear resistance (1M cycles)	IMD or laser + clear coat	0.15mm	⭐⭐⭐⭐⭐

Design Guidelines for Small Symbols

Minimum line width
0.2mm for pad printing, 0.15mm for IMD, 0.1mm for laser etching.

Minimum character height
1.5mm for readable text (2mm recommended for standard users).

Contrast ratio
Dark silicone with light laser etch, or light silicone with dark ink.

Spacing between symbols
At least 0.3mm to avoid merging.

Avoid ultra-fine serifs
Sans-serif fonts (Arial, Helvetica) reproduce better than serif fonts.

Backlighting tip
Laser etching through dark silicone over a white/translucent base creates perfect backlit symbols.

FromRubber's Precision Symbol Solutions

With over 15 years of experience, FromRubber has mastered every method for small and complex symbols. We offer:

✅ Laser etching – 0.1mm precision, no wear

✅ High-def pad printing – 0.2mm line width, 6 colors

✅ IMD (in-mold decoration) – indestructible graphics

✅ Laser+fill – high contrast, recessed protection

We also provide free artwork review: send your vector file (AI, CDR, or high-res PDF), and our engineers will recommend the optimal process and simulate the result before production.

Send Your Artwork for Review →

📧 nani@fromrubber.com | 🌐 www.fromrubber.com | Free DFM + artwork feedback

Real Client Example: Medical Device with 2mm Icons

A medical OEM needed 8 complex icons (each 2mm x 2mm) on a handheld diagnostic keypad. Standard pad printing blurred the fine details. FromRubber switched to fiber laser etching through black silicone over a white base layer. Result: perfectly sharp symbols, backlight-compatible, tested to 500k actuations with zero wear. The client received production samples in 3 weeks.

Small or complex symbols on silicone keypads are absolutely achievable — with the right technology. Laser etching delivers ultra-fine lines (0.1mm) and maximum durability. IMD provides indestructible multi-color graphics. High-precision pad printing works for moderate detail and lower volumes. FromRubber helps you choose the optimal method and provides free artwork validation. Don't let small symbols hold back your design.
